guides.js

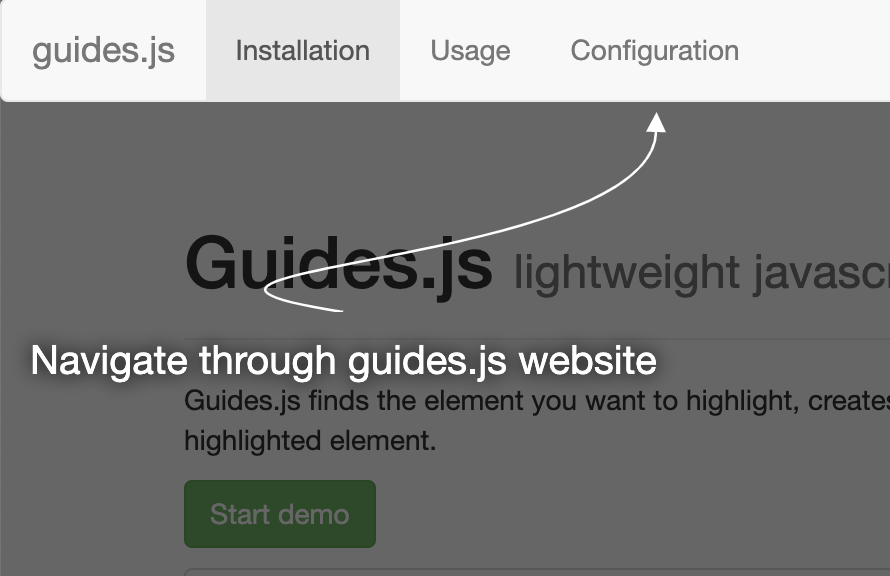

Guides.js finds the element you want to highlight, creates a guide element using the html you specified in the configuration options and connects the guide and the highlighted element with an svg arrow.

Getting Started

Once you have downloaded the source, simply include guides.css in the <head> of your page:

<head>
	...
	<link rel="stylesheet" type="text/css" href="guides.css" >
</head>

and guides.js in your page scripts section. Make sure you include it after jquery:

	...
	<script type="text/javascript" src="jquery.js" >
	<script type="text/javascript" src="guides.js" >
</body>

Note that you can import guides.scss and compile it togerther with your website styles if you are using sass.

Docs

Dependencies

Guides.js depends on jquery, so you need to make sure you include jquery first.

Initialization

Guides.js is a jquery plugin and it can be initialized on an element, that will "trigger" the guided tour:

$('#demo').guides({
	guides: [{
		element: $('.navbar-brand'),
		html: 'Welcome to Guides.js'
	}, {
		element: $('.navbar'),
		html: 'Navigate through guides.js website'
	}, {
		element: $('#demo'),
		html: 'See how it works'
	}, {
		element: $('#download'),
		html: 'Download guides.js'
	}, {
		element: $('#getting-started'),
		html: 'Check out how to get started with guides.js'
	}, {
		element: $('#docs'),
		html: 'Read the docs'
	}]
});

Now the tour will start everytime $('#demo') element is clicked.

If you want to manually start the tour you can do the following:

var guides = $.guides({
	guides: [{
			html: 'Welcome to Guides.js'
		}, {
			element: $('.navbar'),
			html: 'Navigate through guides.js website'
		}, {
			element: $('#demo'),
			html: 'See how it works'
		}, {
			element: $('#download'),
			html: 'Download guides.js'
		}, {
			element: $('#getting-started'),
			html: 'Check out how to get started with guides.js'
		}, {
			element: $('#docs'),
			html: 'Read the docs'
		}]
	});
guides.start();

Configuration options

The default options are as follows:

{
	distance: 100,
	color: '#fffff',
	guides: []
}

distance: number - distance between the guide text and the element that it is related to.
color: string - arrows and text default color
guides: array of objects - the list of guides

The guides array

A guide object looks like this:

{
	element: $('.navbar-brand'),
	html: 'Welcome to Guides.js',
	color: '#fff'
}

element: optional jquery element or string - the element (or selector) you want to highlight; if omitted the guide will be centered
html: required string - this is the content of the tip: you can enter plain text or markup
color: optional string - arrow and text color (falls back to the default color if not specified)
render: optional function - a callback function that is called before guide is rendered

Methods

start: $('#demo').guides('start'); Starts the guided tour.
end: $('#demo').guides('end'); Exits the guided tour.
next: $('#demo').guides('next'); Moves to the next guide.
prev: $('#demo').guides('prev'); Moves back to the previous guide.
destroy: $('#demo').guides('destroy'); Exits the guided tour and destroys it.
setOptions: $('#demo').guides('setOptions', options); Extends the guides configuration options with the options sent as a second parameter.

Events

start: $('#demo').guides({start: onStartFunction}); Called after the tour starts.
end: $('#demo').guides({end: onEndFunction}); Called after the tour ends.
next: $('#demo').guides({next: onNextFunction}); Called after showing the next guide.
prev: $('#demo').guides({prev: onPrevFunction}); Called after showing the previous guide.
render: $('#demo').guides({render: onRenderFunction}); Called before a guide is rendered.
destroy: $('#demo').guides({destroy: onDestroyFunction}); Called after destroying.

Download

The source is availabe on github: https://github.com/epetrova/guides/:

git clone https://github.com/epetrova/guides.git

Alternatively, you can install using Bower:

bower install guides

Guides.js lightweight javascript library for making guided website tours
